PB 1111  PB 1111 Test Jack, PCB Mounting, Ø 2 mm, 10 A

Series: PB 1111

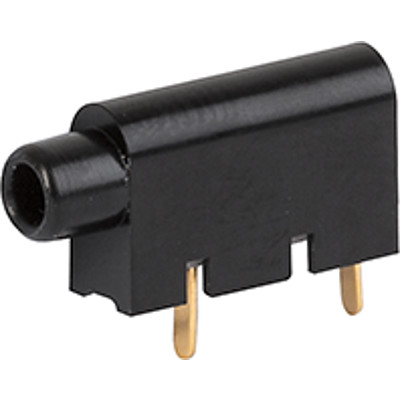

PB 1111 Test Jack, PCB Mounting, Ø 2 mm, 10 A

Free Sample Request

2 Variants


Description

  • PCB,:
  • Test Jack, Diameter 2.0 mm
  • measuring and testing during operation​
  • Open, close with test probe
  • Resilient contacts, gold plated

Diameter

2 mm

Rated current

10 A

Admissible switching power

@ 100 Insertions​:
110 W / max. 2 A or 75 VDC
150 W / max. 5 A or 50 VAC

Contact resistance

< 7 mΩ at 20 mV

Insulation Resistance

> 5 MΩ ( 500 VDC: 1 min)

Dielectric strength

> 2 kV ( 50 Hz: 1 min)

Allowable Operation Temperature

-25 °C to 70 °C

Solderability

235 °C / 2 sec acc. to IEC 60068-2-20 , Test Ta, method 1

Resistance to Soldering Heat

260 °C / 5 sec acc. to IEC 60068-2-20 , Test Tb, method 1A

Weight

0.5 g

Material: Housing

Thermoplastic (PC), UL 94V-2

Surface of contacts

gold plated , Thickness 1.0 µm
