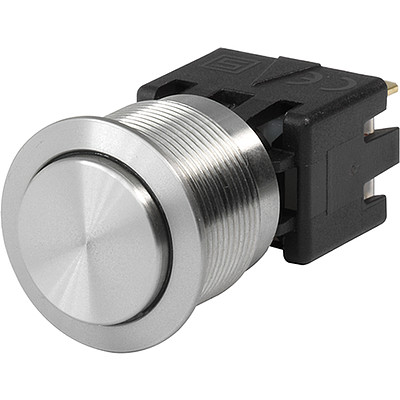

MSM_non-illuminated MO
MO

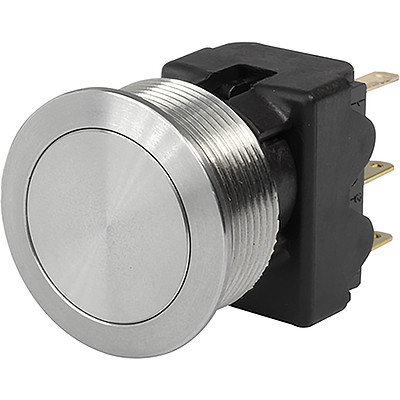

MSM_non-illuminated LA
LA
MSM_non-illuminated black (RC)
MSM_non-illuminated MO
MSM_non-illuminated LA

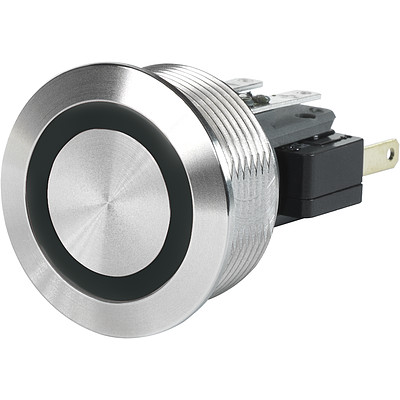

Series: MSM_non-illuminated

Metal Switch, Switching Voltage up to 250 VAC

New_Logo Free Sample Request

86 Variants

Approvals and Compliances
CAD

Description MSM_non-illuminated

Description

  • Mechanical switch with stroke in different versions LA (Latching) and MO (Momentary)
  • With torsion protection for easier handling
  • Equipped with flat plug in terminals to permit fast connection
  • MSM MO: Protection class IP67 frontside

Unique Selling Proposition

  • Attractive tactile feedback
  • High quality materials
  • Long life span
  • Color marking

Characteristics

  • Housing material in high-quality stainless steel or aluminium
  • Switching voltage from 30 VDC to 250 VAC
    Switching current from 0.1 A to 16 A
  • For use in harsh environments
Detailed request for product

Details MSM_non-illuminated

detailsTechnical Data detailsApprovals and Compliances detailsCAD-Drawings detailsDimension detailsElectrical Data

Electrical Data

Micro Switch

see table of variants

Impulse Withstand Voltage (ESD)

4 kV

Mechanical Data

Actuating Force (MO/LA)

4.5 N / 10 N

Actuating Travel (MO/LA)

1.0 mm / 5.2 mm

Lifetime

1.5 million actuations

Shock Protection

IK07 to IK10

Mounting screw torque Plastic Nut

max. 3.5 Nm

Climatical Data

Operating Temperature

-25 to 85 °C (LA until -20°C)

Storage Temperature

-25 to 85 °C (LA until -20°C)

Salt Spray Test (acc. to DIN 50021-SS)

24 h / 48 h / 96 h Residence Time

Material

Housing

Aluminium / Stainless Steel

Actuator

Aluminium / Stainless Steel / Ceramics

Seal Ring

NBR70

Plastic Nut

PA, UL94

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: MSM

Approval Logo Certificates Certification Body Description

Product standards

Product standards that are referenced

Organization Design Standard Description
Partners DIN_Certification_Body Designed according to DIN EN 61058-1 Switches for appliances. Part 1. General requirements
Partners UL_Certification_Body Designed according to UL 1054 UL standard for safety special-use switches

Application standards

Application standards where the product can be used

Organization Design Standard Description
Partners IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements

Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE Selbsteklaration
CE declaration of conformity
SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA
UKCA declaration of conformity
SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif
RoHS
SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety REACH
REACH
SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

03070010000000340700
LOADING...

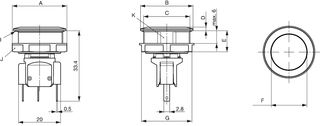

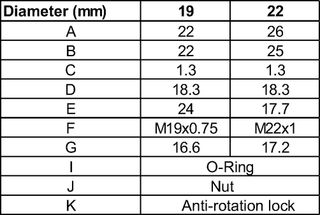

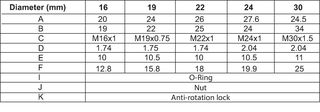

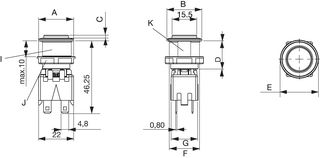

Dimension [mm]

MSM LA double-pole
MSM_LA_zweipolig_Massbild

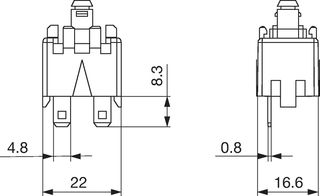

Switching Element LA single-pole
​MSM_LA_Schaltelement
Legend to MSM Latching
MSM_LA_unbeleuchtet_Legende

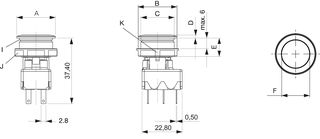

MSM MO single-pole
MSM_MO_einpolig_Massbild
MSM MO double-pole
MSM_MO_zweipolig_Massbild

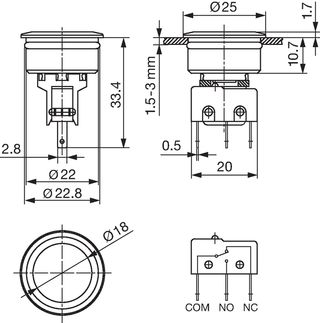

MSM 22 SI
MSM_SI_22_Massbild
Legend to MSM Momentary
MSM_MO_unbeleuchtet_Legende
With torsion protection
MSM_Plattenausschnitt_mit_Verdrehschutz
Without torsion protection
MSM_Plattenausschnitt_ohne_Verdrehschutz

Assembly Instructions

MSM_Montageanleitung_1
During assembly, the protruding bars of the holder should not be pressed together.
MSM_Montageablauf_2
I Housing
II Flat Pin Terminal (Illumination)
III O-Ring gasket
IV Nut (Nut type see Dimensions)
V Module Switching Contact
Actuator Tolerance Range
MSM_DP_CS_Toleranzen
The mounting tolerance range of the actuator varies from 0.2 mm projection length and 0.2 mm short length to the housing edge. The slanting position of the actuator can range within this tolerance.

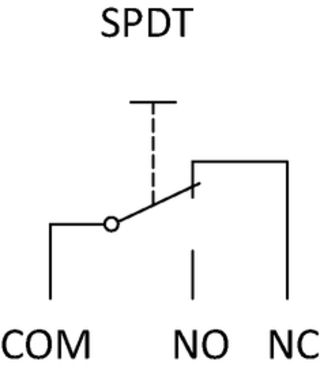

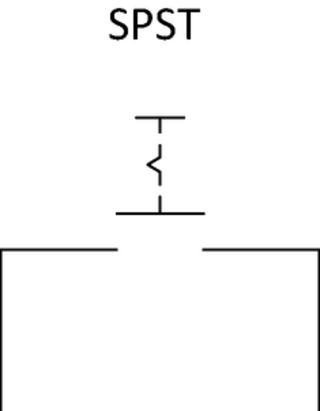

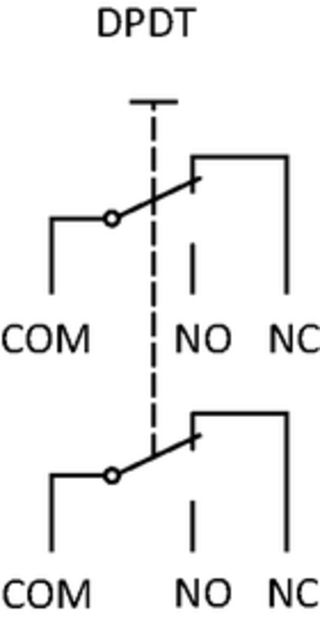

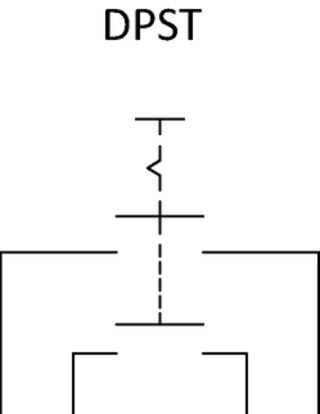

Diagrams

Micro Switch

Micro Switch Switch type Contact Material Switching Voltage Switching current Rated Switching Capacity Lifetime Contact Resistance Insulation Resistance Duration of Bounce
0.1 A, IP40 MO Au max. 30 VDC max. 0.1 A 3 W 0.2 Mio. < 50 mΩ > 100 MΩ < 5 ms
0.1 A, IP67 MO   max. 250 VAC max. 0.1 A 25 W 0.05 Mio.
5 A / 125 VAC bzw. 3 A / 250 VAC, IP40 MO Ag max. 125 / 250 VAC max. 5 / 3 A 750 W 0.2 Mio. < 30 mΩ > 100 MΩ < 5 ms
6 A, IP67 MO   max. 250 VAC max. 5 A 1250 W 0.01 Mio.
10 A, IP40 MO Ag max. 250 VAC max. 10 A 2500 W 0.05 Mio. < 30 mΩ > 100 MΩ < 5 ms
10 A, IP67 MO   max. 250 VAC max. 10 A 2500 W 0.01 Mio.
12 A, IP40 LA Ag max. 250 VAC max. 12 A 3000 W 0.05 Mio. < 100 mΩ
16 A, IP40 LA Ag max. 250 VAC max. 16 A 4000 W 0.04 Mio. < 100 mΩ > 100 MΩ -

Marking MSM_non-illuminated

The last three digits in the order number define the lettering:
000 No Lettering
001-074 Standard Lettering
101- Customized Lettering

Order Index Lettering MSM_non-illuminated

Laser Marking
001 = A 021 = U 041 = ÷ 061 = EIN
002 = B 022 = V 042 = ✳ 062 = AUS
003 = C 023 = W 043 = = 063 = AUF
004 = D 024 = X 044 = # 064 = AB
005 = E 025 = Y 045 = ↔ 065 = ON
006 = F 026 = Z 046 = ↕ 066 = OFF
007 = G 027 = 0 047 = → 067 = UP
008 = H 028 = 1 048 = ← 068 = DOWN
009 = I 029 = 2 049 = ↓ 069 = HIGH
010 = J 030 = 3 050 = ↑ 070 = LOW
011 = K 031 = 4 051 = % 071 = ON/OFF
012 = L 032 = 5 052 = √ 072 = START
013 = M 033 = 6 053 = CTRL 073 = RESET
014 = N 034 = 7 054 = RETURN 074 = 2023-04-18 Symbol_Indize_74_Beschriftung_ES
015 = O 035 = 8 055 = SHIFT 075 = 2023-04-18 Symbol_Indize_075_Beschriftung_ES
016 = P 036 = 9 056 = LOCK 076 = 2023-04-18 Symbol_Indize_076_Beschriftung_ES
017 = Q 037 = + 057 = STOP 077 = 2023-04-18 Symbol_Indize_077_Beschriftung_ES
018 = R 038 = - 058 = ENTER
019 = S 039 = . 059 = BACK
020 = T 040 = x 060 = LINE
Please note that the font size depends on the number of characters

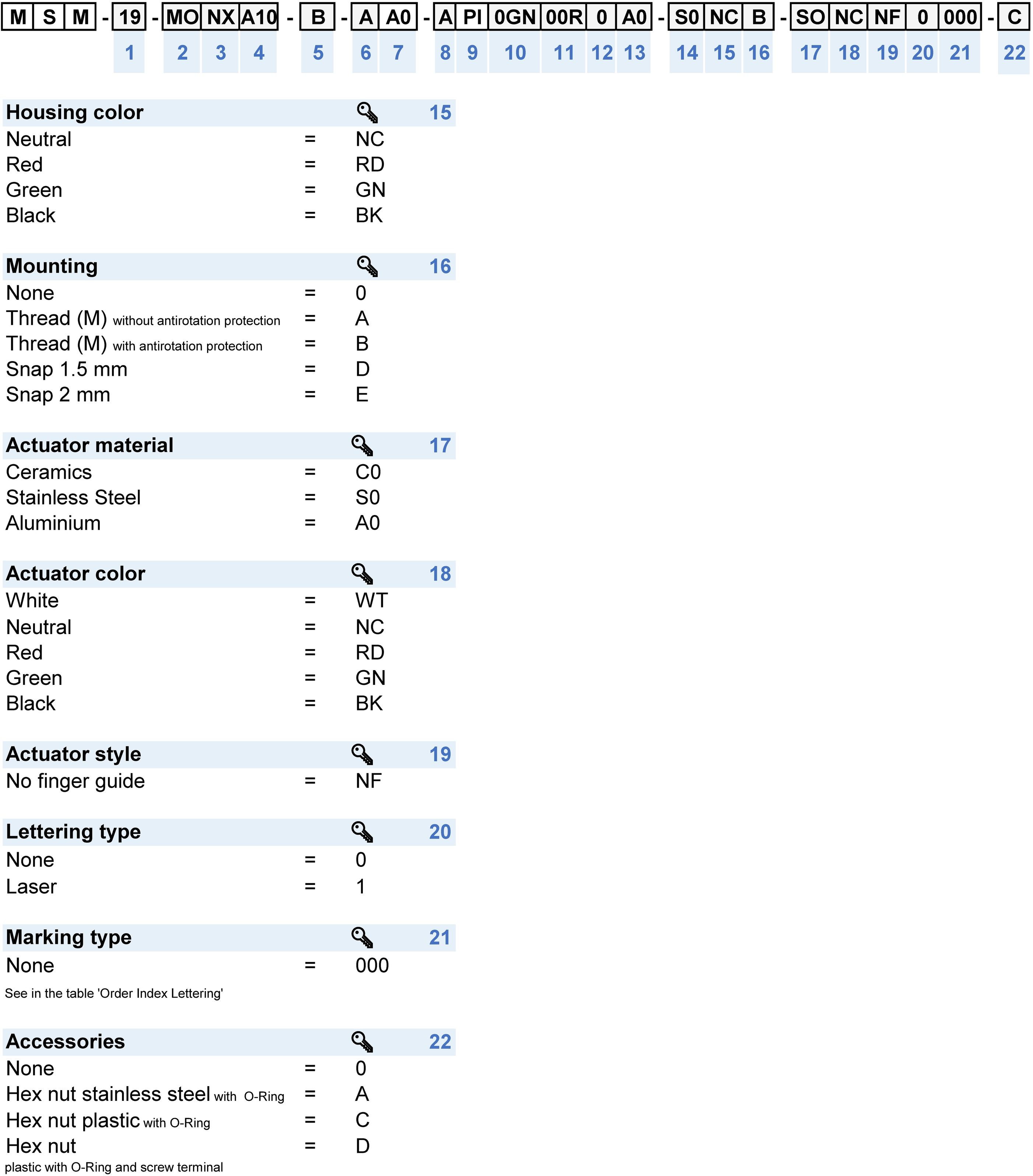

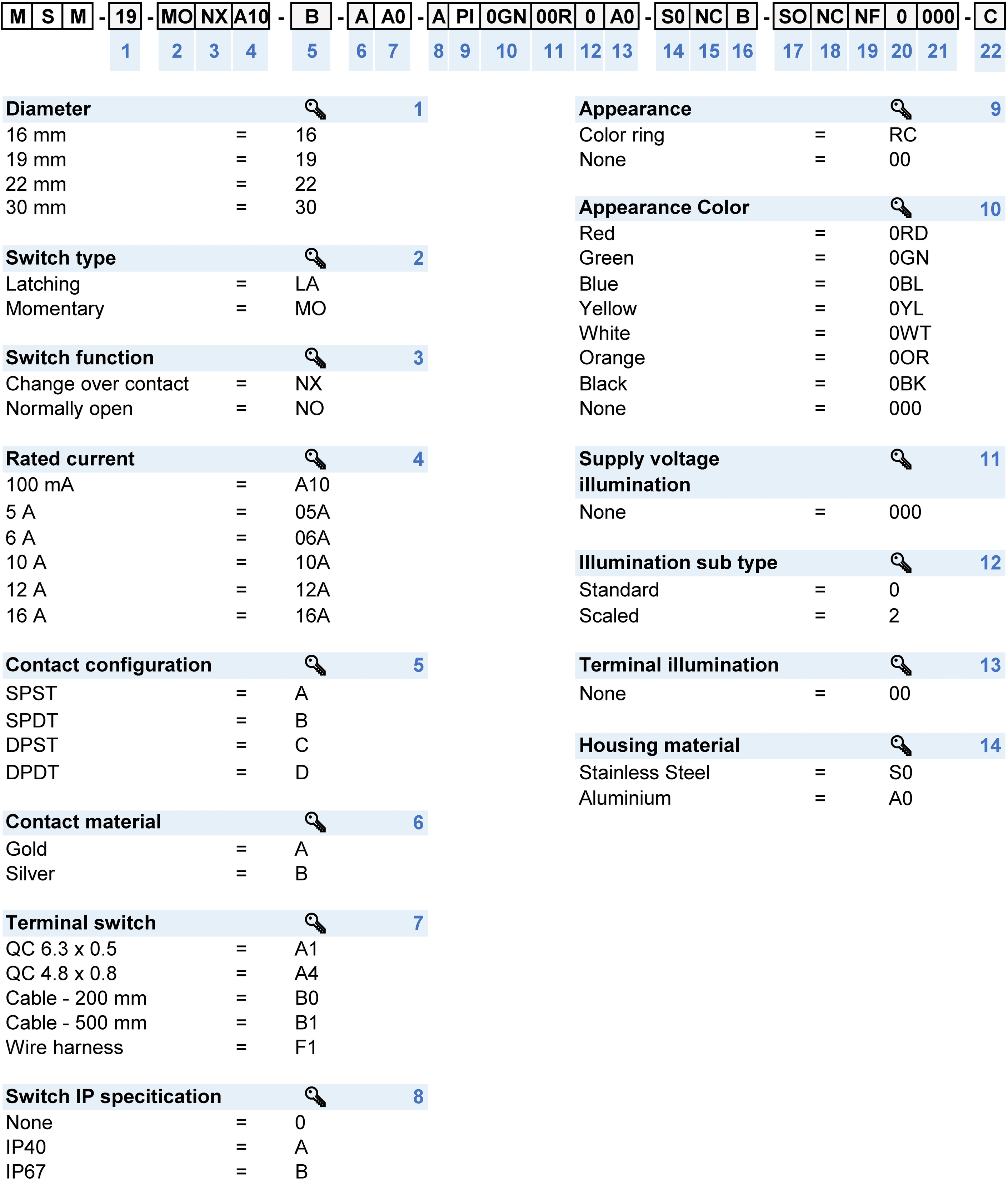

Order number key MSM_non-illuminated

Order number key: MSM_Config.Code_unbeleuchtet

Order number key: MSM_Config.Code_unbeleuchtet



Packaging

MSM_unbeleuchtet_Verpackung
- Actuating elements in ESD safe packaging
- Screw nuts and sealing rings in a bag (enclosd in the box)
- Micro switches in a bag (enclosed in the box)

Short Table of Variants MSM_non-illuminated Open complete table MSM_non-illuminated

Diameter Switch type Switching current

Switching current


Current that flows through the contacts after closing and before opening

 Order Number

Variant Details


The link on the respective order number refers to a separat tab with specific detailed information .
This assures better readable information of the selected product.
Change to the tab All Products in order to show details of another variant.
This approach offers to use generic alias link to the product details:
www.schurter.xx/art/ [Order Number]
where the following variables are used:
- xx is the country specific domain
- [Order Number]

 A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

16 MO 100 mA 1241.6611.1110000  A  ...
16 MO 5 A 1241.6611.1120000  A  ...
16 MO 10 A 1241.6611.1130000 ...
16 MO 100 mA 1241.6612.1110074 ...
16 MO 5 A 1241.6612.1120000 ...
16 MO 100 mA 3-102-649  A  ...
16 MO 5 A 3-102-650  A  ...
16 MO 10 A 3-102-651  A  ...
16 MO 5 A 3-136-737 ...
16 MO 5 A 3-136-738 ...
16 MO 5 A 3-136-740 ...
16 MO 5 A 3-136-741 ...
19 MO 100 mA 1241.6621.1110000  A  ...
19 MO 5 A 1241.6621.1120000  A  ...
19 MO 10 A 1241.6621.1130000  A  ...
19 MO 6 A 1241.6621.1180000  A  ...
19 MO 5 A 1241.6622.1120000 ...
19 MO 5 A 1241.6622.3120000 ...
19 MO 5 A 1241.6622.3120066 ...
19 MO 5 A 1241.6622.5120000 ...
19 MO 5 A 1241.6622.5120065 ...
19 MO 5 A 1241.6921.1120000  A  ...
19 MO 5 A 1241.6922.1120000 ...
19 MO 5 A 1241.7021.1120000 ...
19 MO 6 A 1241.7021.1180000 ...
19 LA 16 A 3-100-987  A  ...
19 LA 16 A 3-100-989  A  ...
19 MO 5 A 3-136-752 ...
19 MO 5 A 3-136-753 ...
19 MO 5 A 3-136-754 ...
19 MO 5 A 3-136-755 ...
19 LA 12 A 1241.6821.1110000  A  ...
19 LA 12 A 1241.6821.1120000  A  ...
22 MO 100 mA 1241.6631.1110000  A  ...
22 MO 5 A 1241.6631.1120000  A  ...
22 MO 10 A 1241.6631.1130000  A  ...
22 MO 6 A 1241.6631.1180000  A  ...
22 MO 100 mA 1241.6632.1110000 ...
22 MO 5 A 1241.6632.1120000 ...
22 MO 5 A 1241.6632.3120000 ...
22 MO 5 A 1241.6632.3120057 ...
22 MO 5 A 1241.6632.3120066 ...
22 MO 5 A 1241.6632.5120000 ...
22 MO 5 A 1241.6632.5120061 ...
22 MO 5 A 1241.6632.5120065 ...
22 MO 5 A 1241.6695.1120000  A  ...
22 MO 5 A 1241.6699.1120000  A  ...
22 MO 5 A 1241.6931.1120000  A  ...
22 MO 5 A 1241.6932.1120000 ...
22 MO 100 mA 1241.7031.1110000 ...
22 MO 5 A 1241.7031.1120000 ...
22 MO 10 A 1241.7031.1130000 ...
22 MO 5 A 1241.7032.1120000 ...
22 LA 16 A 3-101-001  A  ...
22 LA 16 A 3-101-012 ...
22 MO 5 A 3-136-756 ...
22 MO 5 A 3-136-757 ...
22 MO 5 A 3-136-758 ...
22 MO 5 A 3-136-759 ...
22 MO 5 A 3-136-760 ...
22 MO 5 A 3-136-761 ...
22 MO 5 A 3-136-762 ...
22 MO 100 mA 3-136-763 ...
22 MO 100 mA 3-136-764 ...
22 MO 100 mA 3-136-765 ...
22 MO 100 mA 3-136-766 ...
22 MO 100 mA 3-136-767 ...
22 MO 100 mA 3-136-768 ...
22 MO 100 mA 3-136-769 ...
22 LA 12 A 1241.6831.1110000 ...
22 LA 12 A 1241.6831.1120000  A  ...
24 MO 100 mA 1241.6641.1110000  A  ...
24 MO 5 A 1241.6641.1120000  A  ...
24 MO 10 A 3-128-295  A  ...
24 MO 100 mA 3-132-395 ...
24 MO 5 A 3-132-396 ...
30 MO 100 mA 1241.6661.1110000  A  ...
30 MO 5 A 1241.6661.1120000  A  ...
30 MO 10 A 1241.6661.1130000 ...
30 MO 100 mA 1241.6661.1170000  A  ...
30 MO 5 A 1241.6961.1120000 ...
30 MO 5 A 1241.6962.1120000 ...
30 MO 5 A 3-136-770 ...
30 MO 5 A 3-136-771 ...
30 MO 5 A 3-136-772 ...
30 MO 5 A 3-136-773 ...

█ Most Popular.

Packaging unit
10 pcs. In box or packed in air cushion bags
