Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

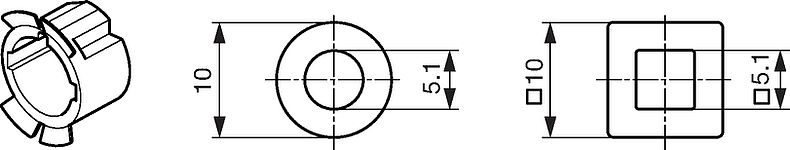

Frontpanel Switch 10 mm
green
round, illuminated
Frontpanel Switch 10 mm
green
round
Frontpanel Switch 10 mm
green
square
10 Variants
Description
- Available in version square or round in different colours
- non-illuminated or illuminated

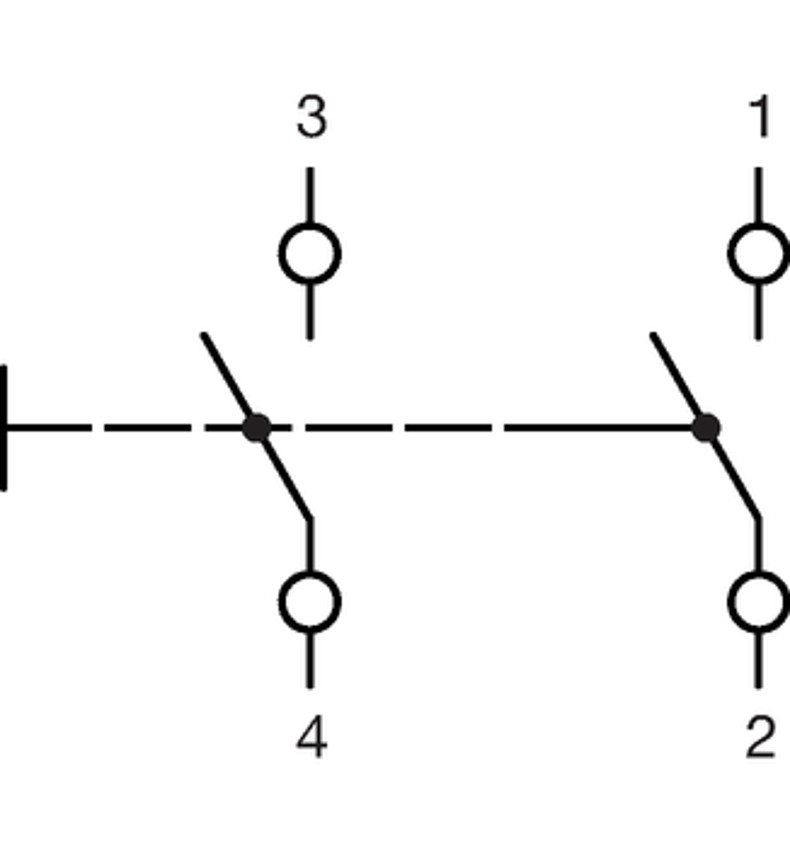

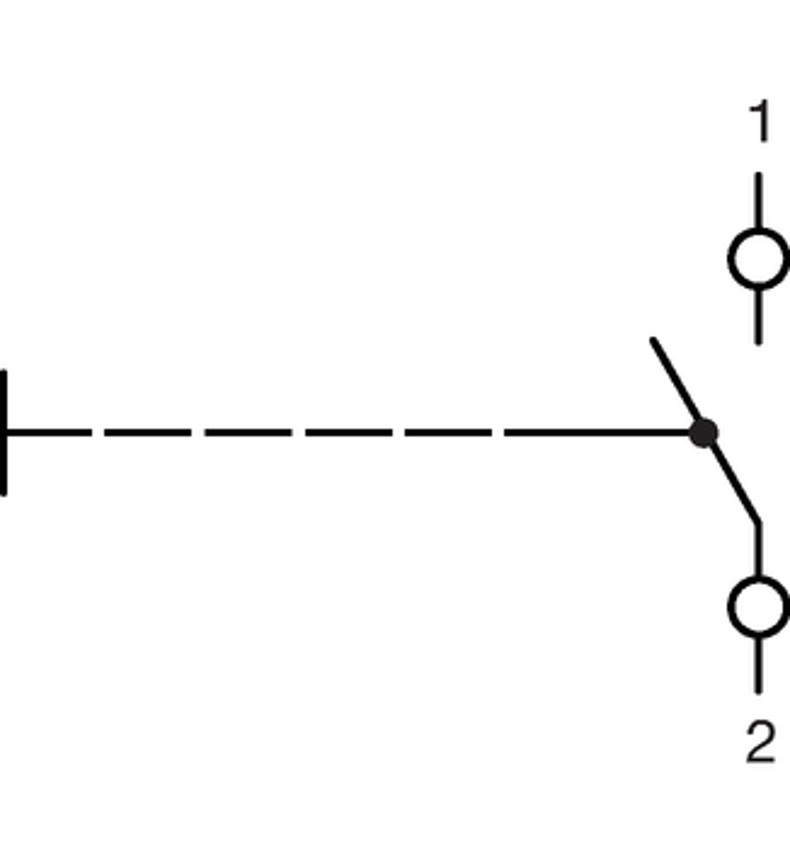

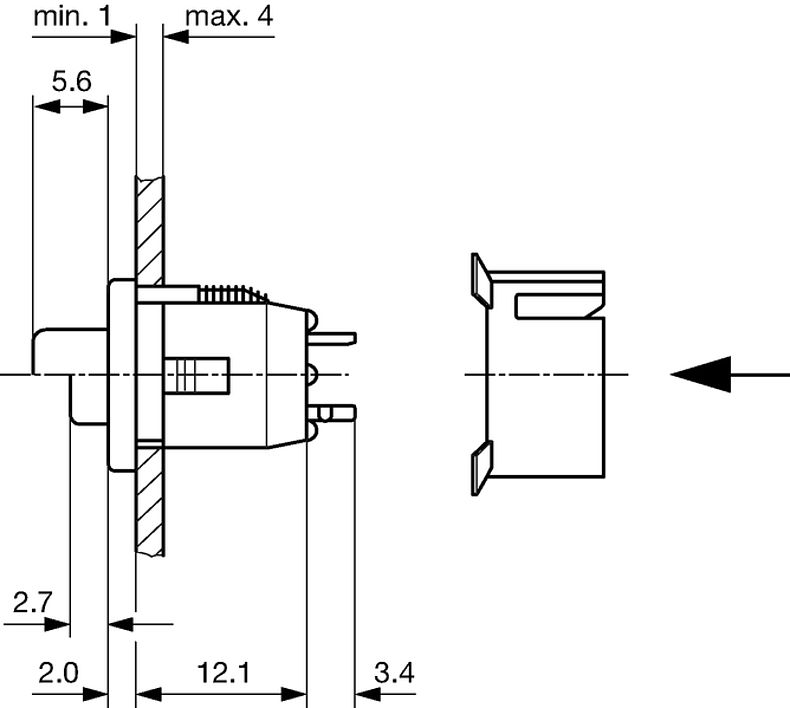

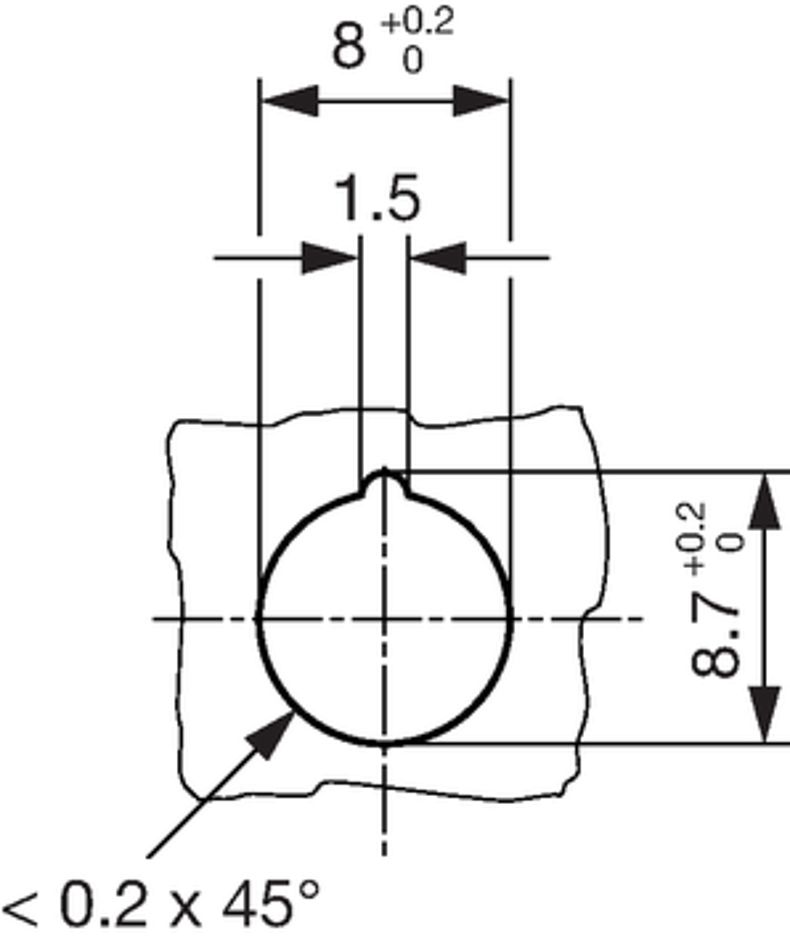

- 1 or 2 pole

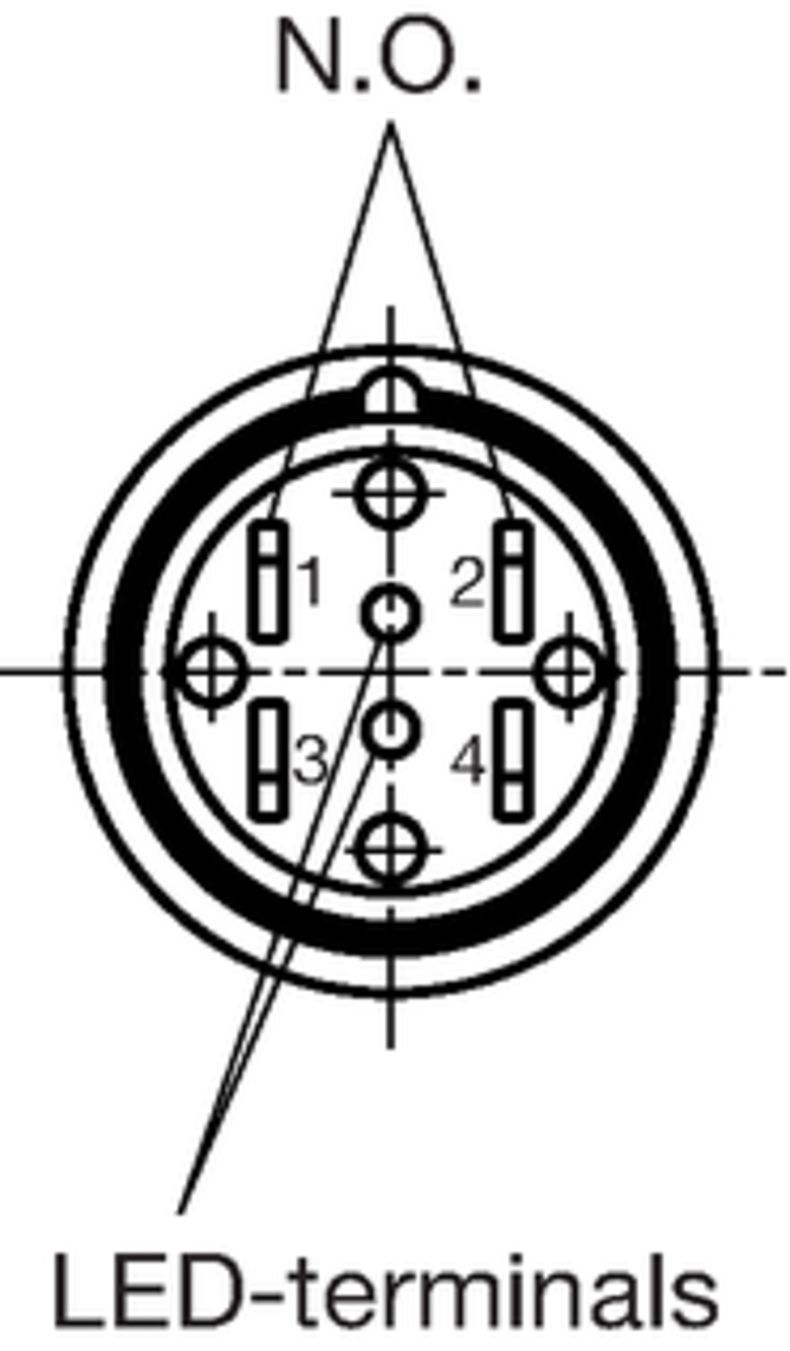

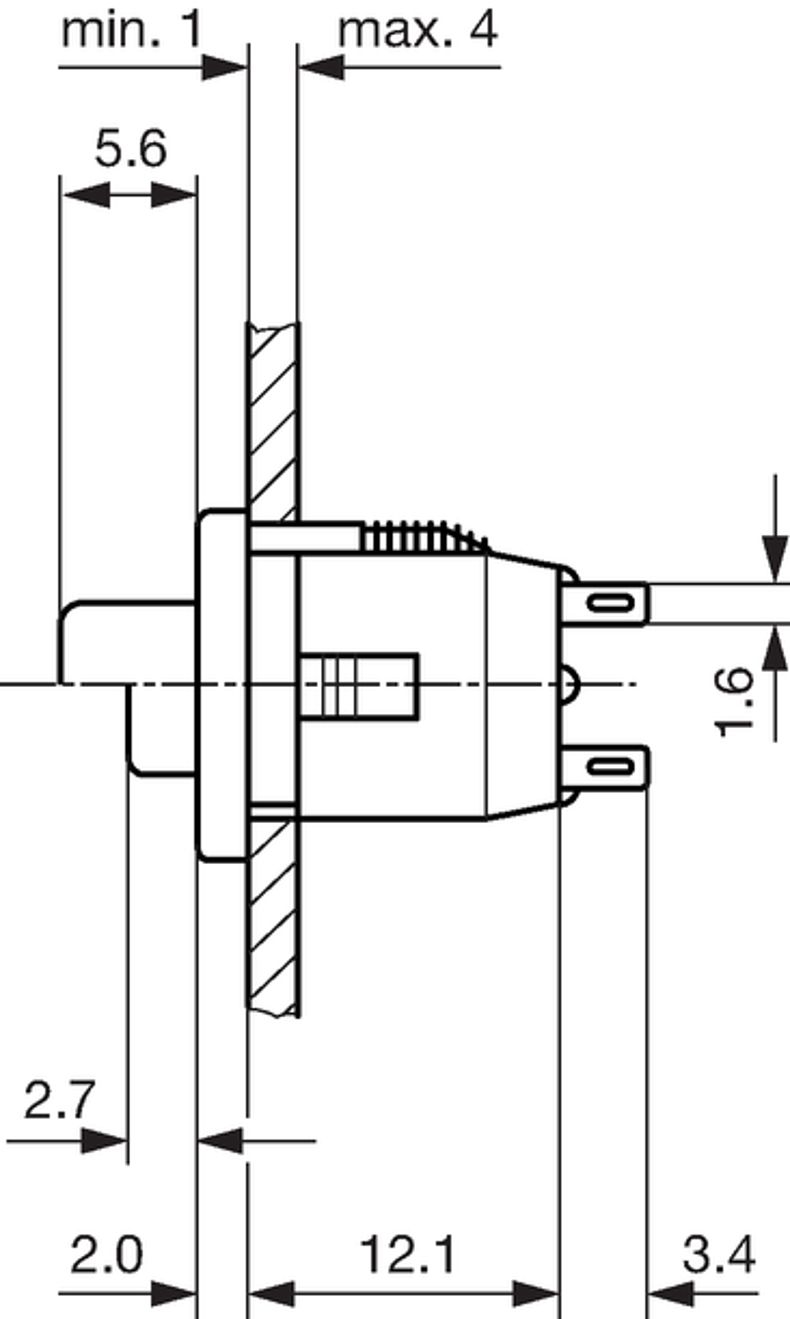

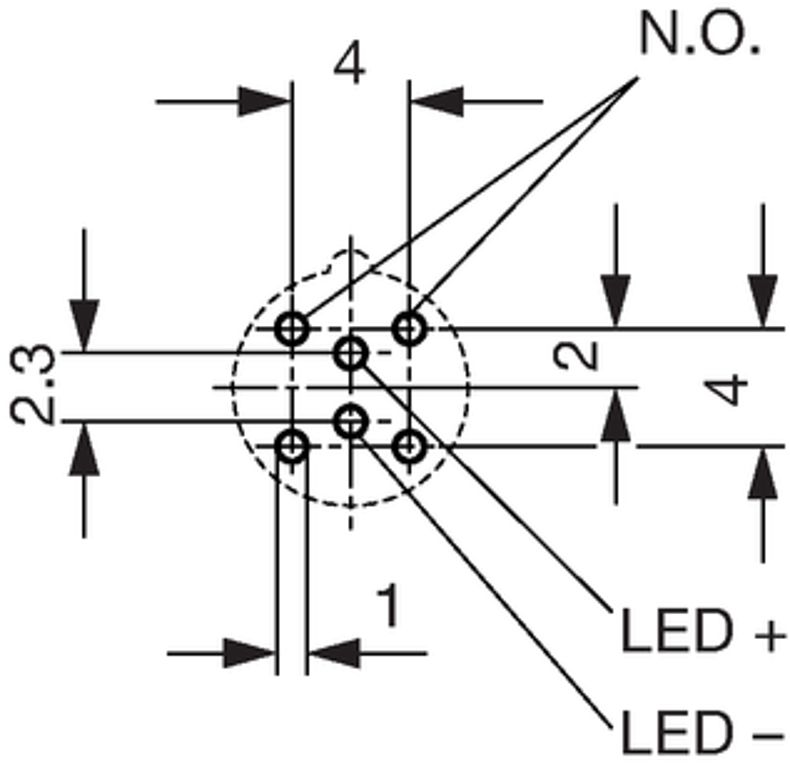

- Solder / THT / solder lugs
Unique Selling Proposition
- Absolute reliability and simple assembly
- Compact design with very small mounting depth
- Good illumination
Electrical Data
Switching Voltage
min. 100 mVAC/DC , max. 48 VAC / 48 VDC
Switching current
max. 200 mA
Lifetime
> 100'000 actuations at Rated Switching Capacity 1.2 W
Contact Resistance
< 20 mΩ
< 25 mΩ after lifetime
Insulation Resistance
> 10'000 MΩ
Duration of Bounce
typ. 0.5 ms
Mechanical Data
Actuating Force
1.2 ± 0.6 N
Actuating Travel
1.3 ± 0.5 mm
End Actuating Travel
2.9 ± 0.5 mm
End Stop Strength
> 50 N
Lifetime
> 100'000 actuations
Climatical Data
Operating Temperature
illuminated -25 °C to 60 °C
Non-illuminated -25 °C to 85 °C
Storage Temperature
illuminated -25 °C to 60 °C
Non-illuminated -25 °C to 85 °C
IP-Protection
IP40
Other Data
Solderability
235 °C / 2 sec (IEC 60068-2-20 Test Ta Method 1)
Resistance to Soldering Heat
260 °C / 5 sec (IEC 60068-2-20 Test Tb Method 1A)
Material
Socket
Thermoplastic (PES)
Button
Thermoplastic (PC)
Contact
CuZn37 5 µm Ag
Contact spring
CuBe37 5 µm Ag
Terminals
CuZn37 4 µm SN Pb 40
Short Table of Variants LDT/LDS Open complete table LDT/LDS
| Type | Number of Poles | Terminal |
Bestellnummer
|
Symbols, Footprints, 3D-Models | Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Momentary | 1-pole | Solder lugs | 0041.8841.3107 |
|
- | ... | ||||||
| Momentary | 1-pole | Solder lugs | 0041.8841.7107 |
|
- | ... | ||||||
| Latching | 2-pole | Solder lugs | 0041.8857.3117 |
|
- | ... | ||||||
| Latching | 2-pole | Solder lugs | 0041.8857.5127 |
|
- | ... | ||||||
| Momentary | 1-pole | Solder / THT | 0041.9141.3107 |
|
- | ... | ||||||
| Momentary | 1-pole | Solder / THT | 0041.9146.3117 |
|
- | ... | ||||||
| Momentary | 1-pole | Solder / THT | 0041.9146.5127 |
|
- | ... | ||||||
| Latching | 1-pole | Solder / THT | 0041.9156.3117 |
|
- | ... | ||||||
| Latching | 1-pole | Solder / THT | 0041.9156.5127 |
|
- | ... | ||||||

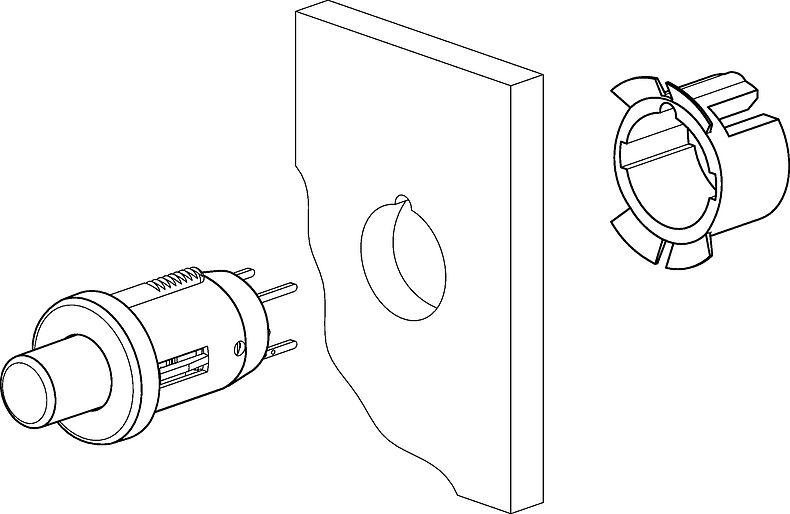

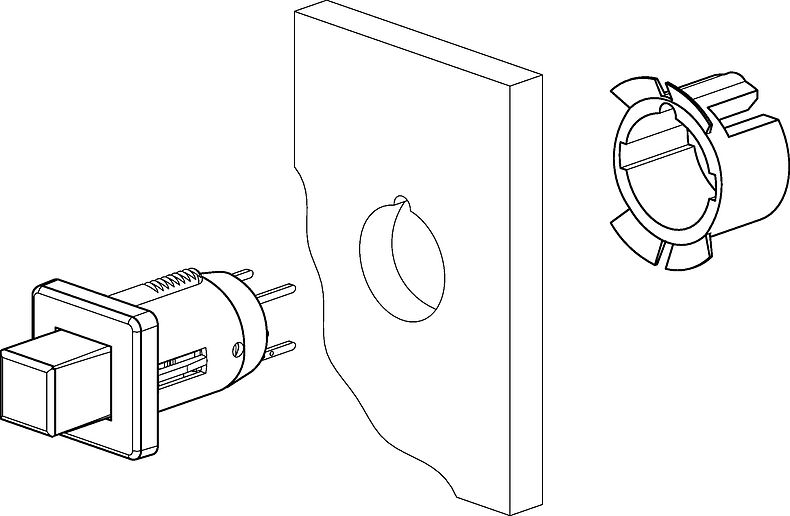

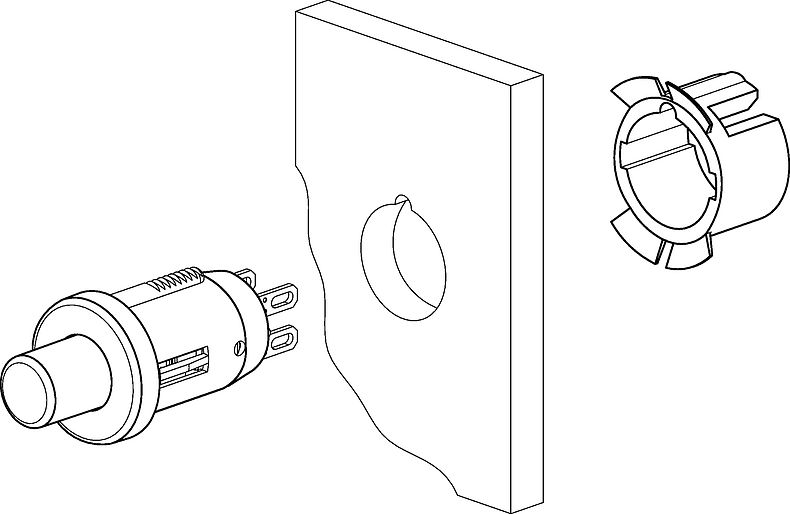

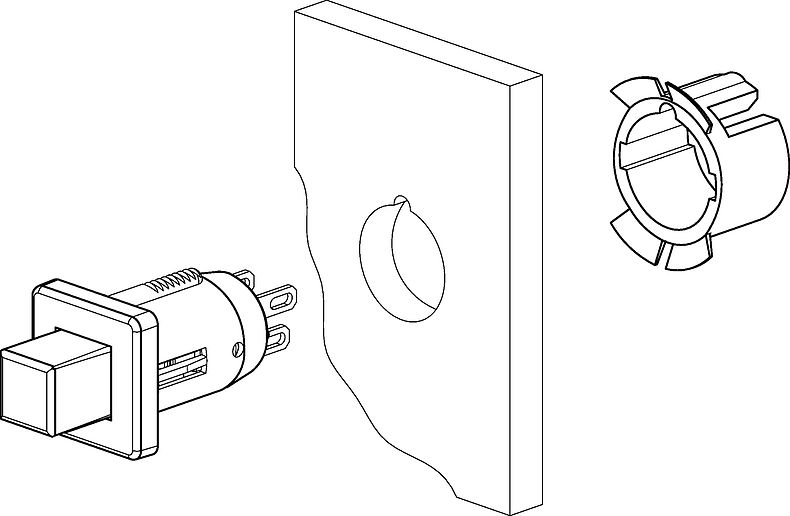

| Securing clip | - | - | 0850.9242 |
|
- | ... | ||||||
| With the illuminated version, the small button is transparent |
||||||||||||
| ¹⁾Securing clip is included for solder lug version |
||||||||||||
| Packaging unit | 100 pcs |
