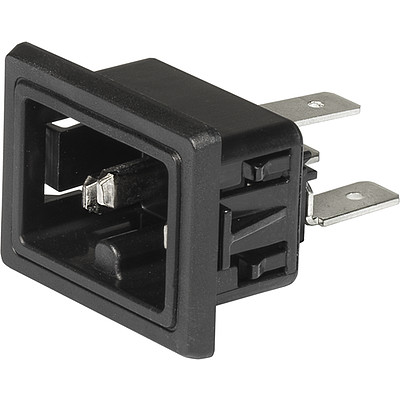

GH21  IEC Socket-Outlet 400 VDC, Snap-in Mounting, Front Side, Quick-connect or Solder Terminals

Series: GH21

IEC Socket-Outlet 400 VDC, Snap-in Mounting, Front Side, Quick-connect or Solder Terminals

New_Logo Free Sample Request

12 Variants

Connectors (Inlets/Outlets)

Connector Logo

Green Line



  • Panel mount: Snap-in or screw-on mounting front side
  • Socket-Outlet,, Protection class I

Unique Selling Proposition

  • Standard form acc. to IEC TS 63236-3
  • Hot plug rated for disconnecting under load up to 2.6 kW
  • Ideal for direct current devices with an operating temperature up to 105 °C
  • With cord retention system

Other versions on request

  • Other panel thickness
  • Other terminals
  • Color coding in grey or white

Ratings IEC

6.5 - 8.8 A / 294 - 400 VDC; 10A / 250VAC

max. 2.6 kW power

Dielectric Strength

> 3 kVDC between + and -
> 3 kVDC between +/- and PE
(1 min)

Allowable Operation Temperature

-5 °C to 105 °C


front side IP20 acc. to IEC 60529

Panel Thickness S

Snap-in Snap-in: 1.0/1.5/2.0 mm / Screw: max. 8 mm
Mounting screw torque max 0.5 Nm

Material: Housing

Thermoplastic, black, UL 94V-0

Appliance inlet/-outlet

Standard Sheet 1 acc. to
IEC TS 63236-3 ,   Protection Class I , ± 200 VDC

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: GH21

Approval Logo Certificates Certification Body Description
Approval marks VDE VDE VDE Certificate Number: 40051170
Approval marks UL UL UL File Number: E96454

Product standards

Product standards that are referenced

Organization Design Standard Description
Approval marks IEC Designed according to IEC TS 63236-3 Direct current (DC) appliance couplers for information and communication technology (ICT) equipment installed in data centers and telecom central offices - Part 3: AC/DC appliance inlet
Approval marks UL Designed according to UL Subject 2695 Outline for DC rated Attachment Plugs and Outlet Devices for ICT Equipment installed in restricted access locations

Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety Halogenfree SCHURTER AG SCHURTER strives to offer our customers halogen free products.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
Green Line Baum_Logo SCHURTER AG Green Line products are aligned with the UN's Strategic Development Goals (SDGs). Components of the products are made of sustainable, environmentally friendly materials. These include, for example, bio-based plastics or lead-free metal alloys. Products in this line can also support the economical, intelligent use of resources.


Dimensions [mm]

Short Table of Variants GH21 Open complete table GH21

Green Line Logo Color Panel mounting Order Number

Variant Details

A=Most Popular Free Sample Distributor Stock Check ...
black Screw 3-142-765 ...
black Screw 3-142-761 ...
black Screw 3-142-769 ...
black Snap-in 3-142-766 ...
black Snap-in 3-142-762 ...
black Snap-in 3-142-770 ...
black Snap-in 3-142-767 ...
black Snap-in 3-142-763 ...
black Snap-in 3-142-771 ...
black Snap-in 3-142-768 ...
black Snap-in 3-142-764 ...
black Snap-in 3-142-772 ...

Packaging unit 50 Pcs

Mating Inlets/Plugs (2)

[Swipe to the left and right for more options]


4781 Mounting: Power Cord, Cable, Connector: IEC C15


IEC Plug 400 VDC, Rewireable, Straight, max. Cable Diameter 9.2 mm
