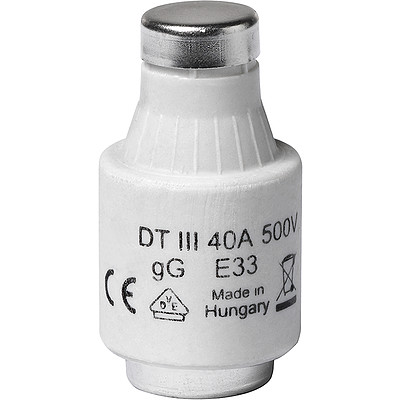

DTIII 500V  Fuse DTIII 500V

Series: DTIII 500V

Fuse DTIII 500V

Free Sample Request

5 Variants


Description

  • Operation full range cable defensive fuses
  • Over-load and short-circuit protection
  • Colored characteristic detector in the middle
  • Characteristic gG
  • According to IEC 269

Rated Current In

32-  63 A

Rated Voltage

500 VAC

Breaking Capacity

50 kA

Rated Power Operating Frequency fe

50 Hz

Basic Design

Insulator

Ceramics

Metal components

Brass

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in   Details about Approvals


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

900130010000005008
LOADING...

Time-Current-Curves

DT II - DT III

Time in Seconds
Current in Amperes


Short Table of Variants DTIII 500V Open complete table DTIII 500V

Rated current Color Packaging unit E-No. A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...
[A]     Pcs

32 black 25 800353009  A  ...
35 black 25 800353509  A  ...
40 black 25 800354009  A  ...
50 white 25 800355009  A  ...
63 copper 25 800356009  A  ...

Most Popular.
