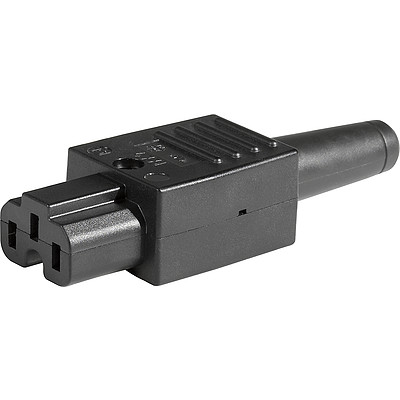

Standard version with nickel-plated contacts

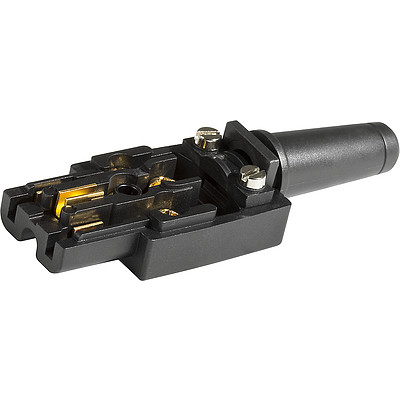

Variant with gold plated contacts

Series: 4771

IEC Connector C15A for very hot conditions 155°C, Rewireable, Straight

Last order date: 15.12.2023 (Only available as long as in stock)

4 Variants

Connectors (Inlets/Outlets)

C15 A

155° C

Approvals and Compliances

CAD

Description

Connector: Screwing cable terminal:
Pin temperature 155 °C, Protection class I, Cable
Cable guard included
Variants with gold plated contacts

Unique Selling Proposition

Wide range of approvals
Gold plated contacts for sensitive applications
Easy cable assembly

Detailed request for product

Details 4771

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Ratings IEC

The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

10 A / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL

15 A / 250 VAC; 60 Hz

Dielectric Strength

Information abou the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)

Allowable Operation Temperature

-25 °C to 155 °C

IP-Protection

The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects.
Details about IP protection degree can be looked up in the general product information
IP-Protection

front side IP20 acc. to IEC 60529

Protection against electric shock

Protection Class

Class I: with ground; Class II: without ground

Detailed information relating to protection class can also be found in the general product information
Protection against electric shock

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Terminals

Terminals according IEC Standard.

Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

Screw clamps

Material: Housing

Phenolic, black

Appliance inlet/-outlet

Connector type according to IEC 60320-1 resp. IEC 60320-2-2, UL498, CSA C22.2 no.42

Details on connectors and their names can be found in the general product information
Appliance Couplers Mating Connectors Term explanation Special Connector Designs

C15A acc. to IEC 60320-1
UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 155 °C, 10 A, Protection Class I

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: 4771

Certificates	Certification Body	Description
VDE Approvals	VDE	Certificate Number: 40045962
UL Approvals	UL	UL File Number:
CCC Approvals	CCC	CCC Certificate Number: 2014010204709153
METI Approvals	METI	Japan Electrical Safety and Environment technology Laboratories

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60320-1	Appliance couplers for household and similar general purposes
Designed according to	UL 60320-1	Standard for Attachment Plugs and Receptacles
Designed according to	CSA C22.2 no. 60320-1	General Use Receptacles, Attachment Plugs, and Similar Wiring Devices

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

Dimensions [mm]



	1) Cut strain relief 8 (10) mm here for 10 mm cable A: Strain relief 8 mm: 91 mm B: Strain relief 10 mm: 86 mm

Short Table of Variants 4771 Open complete table 4771

Color	Max. cable diameter	Max. wire size	Order Number Variant Details The link on the respective order number refers to a separat tab with specific detailed information . This assures better readable information of the selected product. Change to the tab All Products in order to show details of another variant. This approach offers to use generic alias link to the product details: www.schurter.xx/art/ [Order Number] where the following variables are used: - xx is the country specific domain - [Order Number]	A=Most Popular A=Most Popular Most popular products have the following customer benefits: - previously ordered by multiple customers - generally in stock for immediate delivery - early adoption or mature life cycle Contact us for availability on other product variants, lead-times vary: Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity: Stock Check SCHURTER	...

black	8 (10) mm	3 x 1 mm² / 3 x 14 AWG	4771.0110	A	...
black	10 mm	3 x 1 mm² / 3 x 14 AWG	4771.0210		...
black	8 (10) mm	3 x 1 mm² / 3 x 14 AWG	4771.1110		...
black	10 mm	3 x 1 mm² / 3 x 14 AWG	4771.1210		...
█ Most Popular. Max. torque for screws: Terminals: 0.8 Nm, Cable clamps: 0.8 Nm, Cover: 0.8 Nm

Packaging unit

50 Pcs

Table of Variants 4771

Color	Max. cable diameter	Max. wire size	Contact	Order Number Variant Details The link on the respective order number refers to a separat tab with specific detailed information . This assures better readable information of the selected product. Change to the tab All Products in order to show details of another variant. This approach offers to use generic alias link to the product details: www.schurter.xx/art/ [Order Number] where the following variables are used: - xx is the country specific domain - [Order Number]	A=Most Popular A=Most Popular Most popular products have the following customer benefits: - previously ordered by multiple customers - generally in stock for immediate delivery - early adoption or mature life cycle Contact us for availability on other product variants, lead-times vary: Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity: Stock Check SCHURTER	MOQ MOQ Minimum order quantity. It is necessary to meet the MOQ when placing orders. Please contact us for assistance: Contact-Form	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact-Form

black	8 (10) mm	3 x 1 mm² / 3 x 14 AWG	raw	4771.0110	A	50	50
black	10 mm	3 x 1 mm² / 3 x 14 AWG	raw	4771.0210		50	50
black	8 (10) mm	3 x 1 mm² / 3 x 14 AWG	gold plated	4771.1110		50	50
black	10 mm	3 x 1 mm² / 3 x 14 AWG	gold plated	4771.1210		50	50
█ Most Popular. Max. torque for screws: Terminals: 0.8 Nm, Cable clamps: 0.8 Nm, Cover: 0.8 Nm

Packaging unit

50 Pcs
